DIY CNC

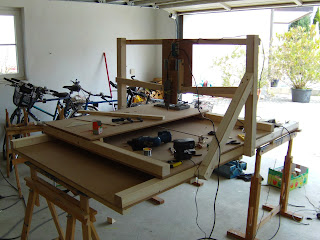

In this post I will show you my homemade CNC-mill.
The mill is entirely made of stuff you can get at the hardwarestore.
I did not use pricy step-motors but cheap and strong geared motors from electric screwdrivers.


Threaded rods were used to create a prepulsion-mechanism.
This is the Z-axis.

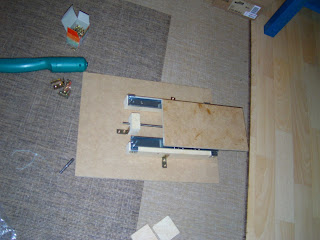

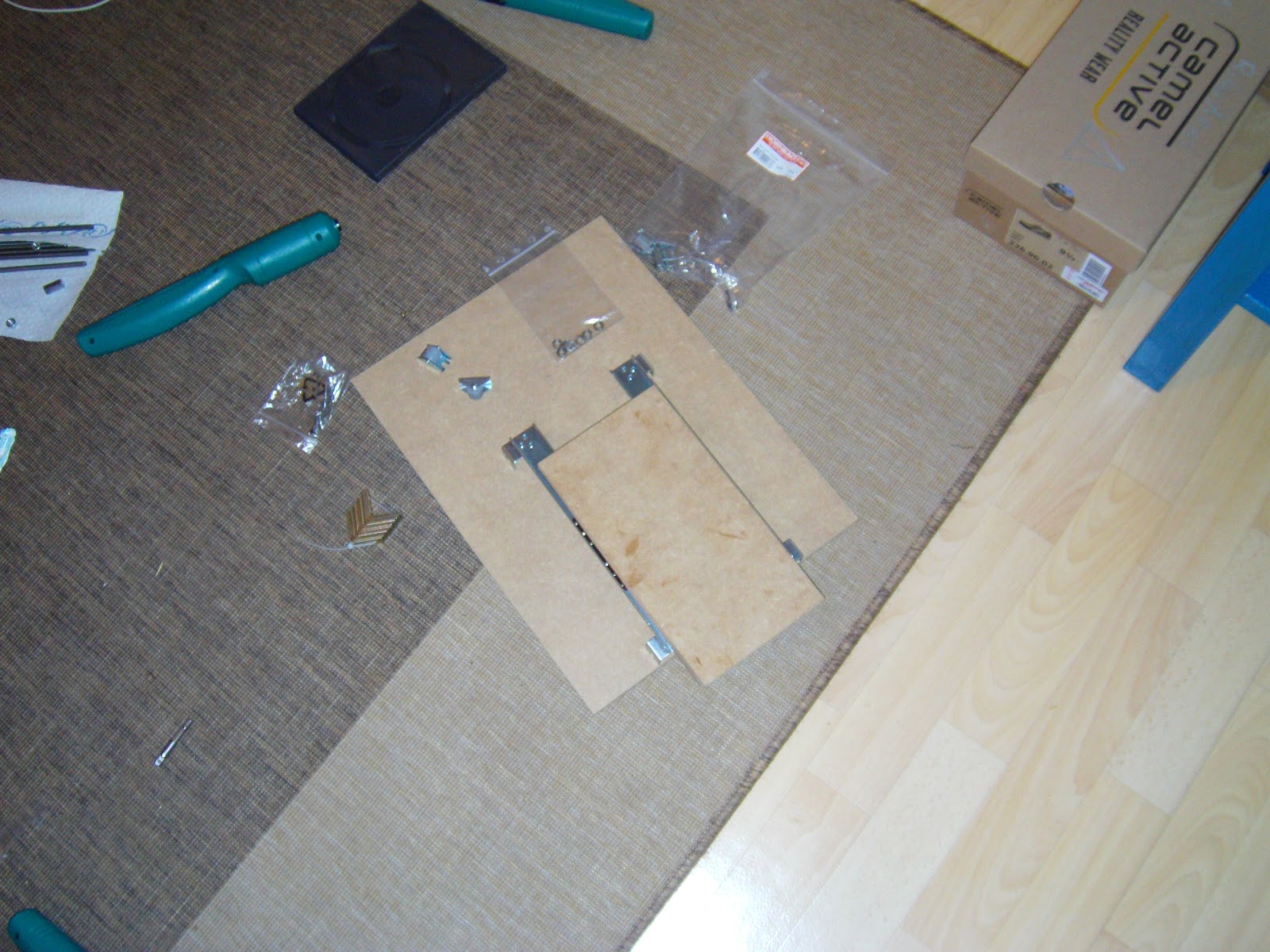

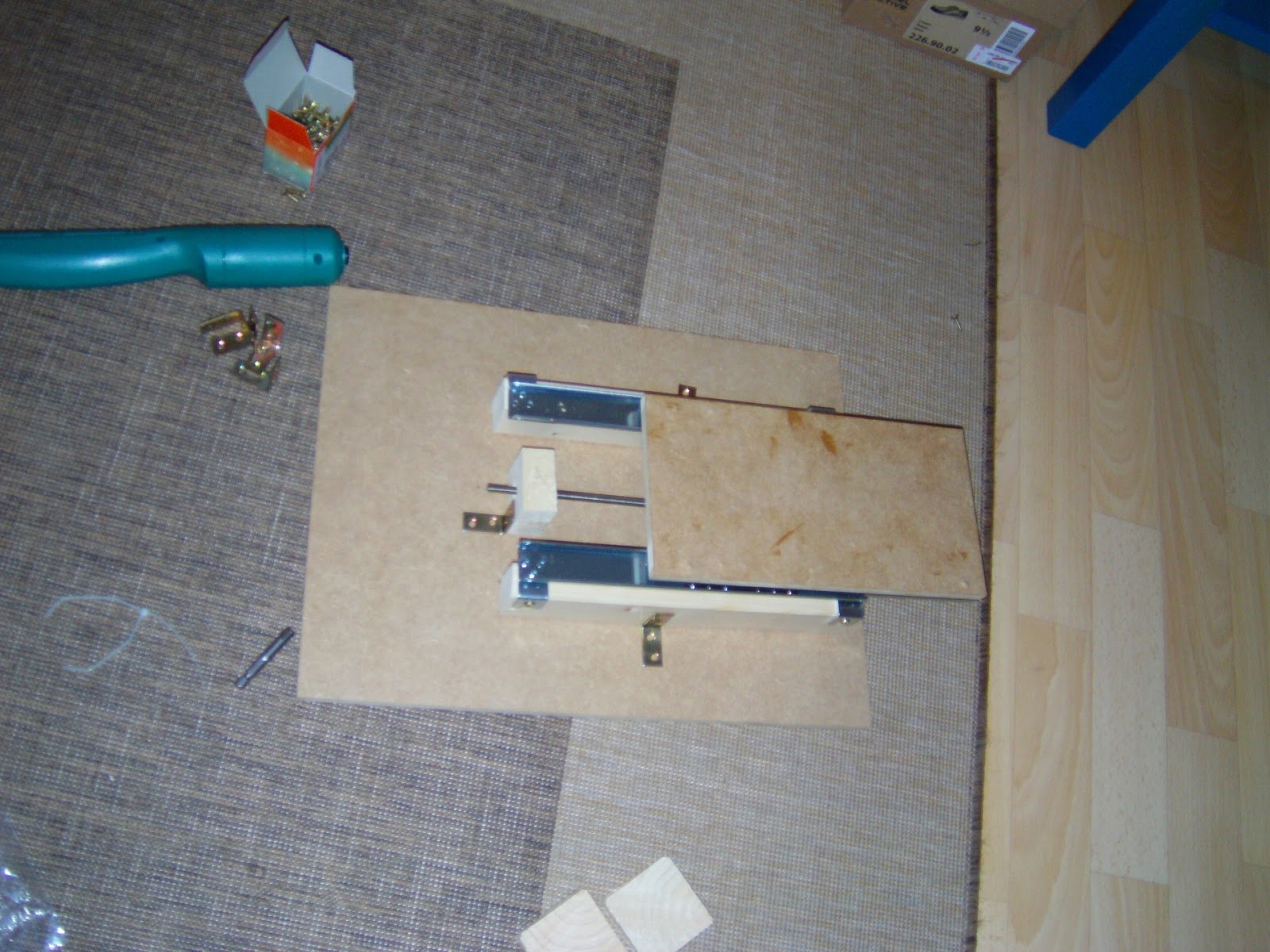

X and Y axis:

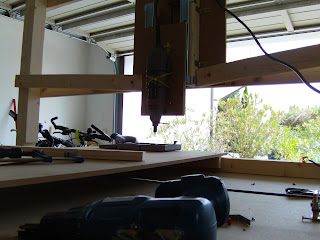

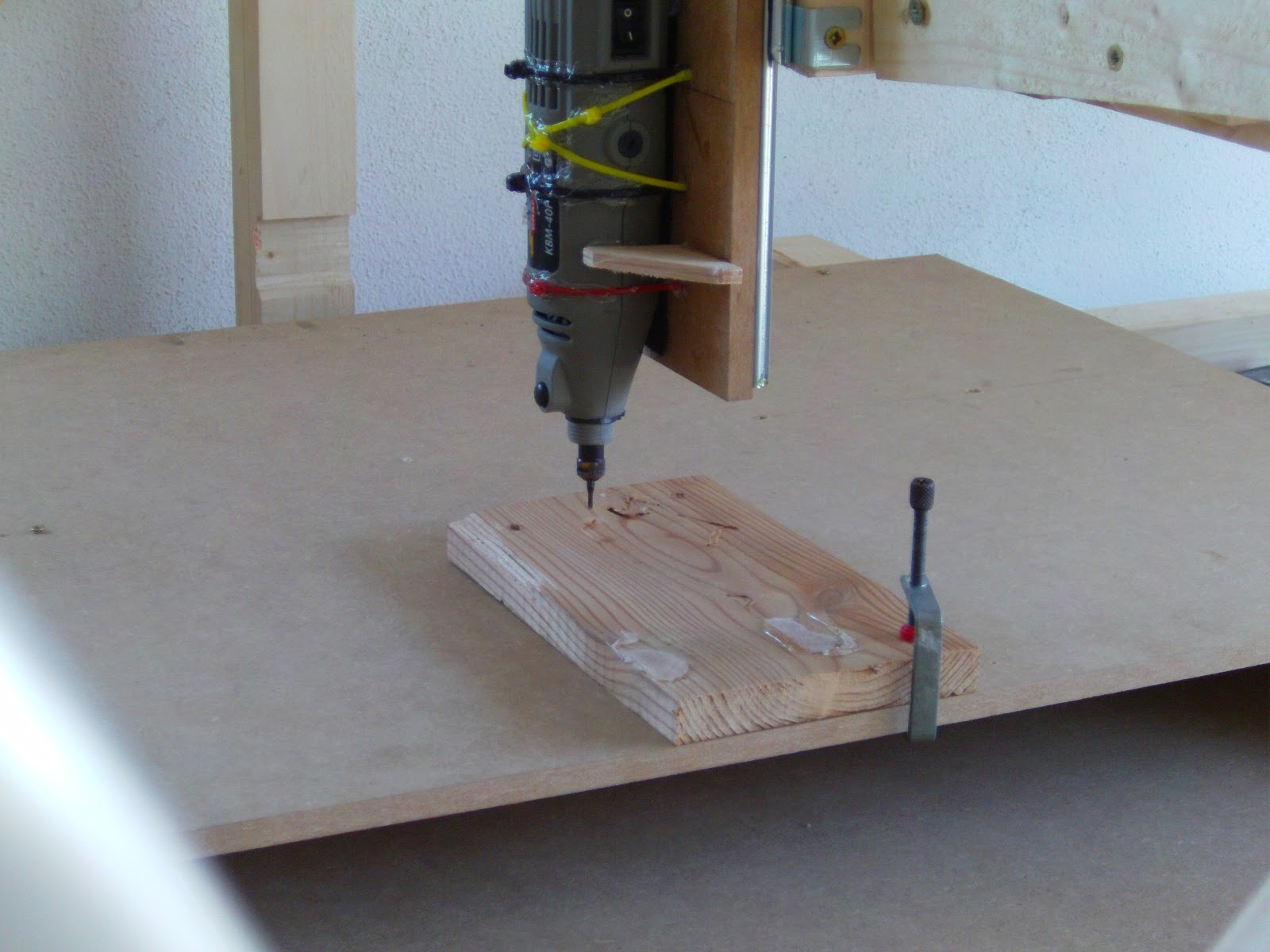

Just attached my dremel and milled the first piece.
